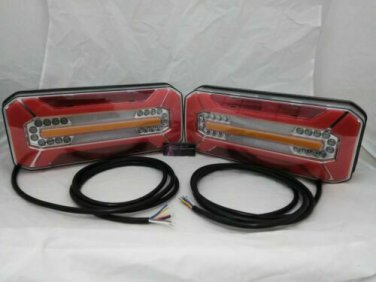

Demo Videos at https://youtu.be/sDNpXJXAYdMDemo Video 2 at https://youtu.be/Ijai_I2wsv4 The new series of W185DD LED multifunctional rear lamps with dynamic cascading direction indicator have an innovative design and a unique look. Each LED light: tail, cascading direction indicator and reverse, are made of a non-transparent material. This diffuses the light so individual LEDs cannot be seen, creating a pleasant glow with a neon effect. The lens and lamp housing are made of high quality plastic, which is resistant to scratches, temperature changes and UV radiation. The lamp is E-type approved and has electromagnetic compatibility approvals as well. It is easy to mount on the vehicle. Power Consumption: position light: 1,3W (12V) or 2,5W (24V) side position light: 0,3W (12V) or 0,6W (24V) stop light: 1,3W (12V) or 1,3W (24V) direction indicator light: 10,8W (12V) or 10,8W (24V) reversing light: 4,5W (12V) or 4,5W (24V) fog light: 1,6W (12V) or 1,6W (24V) bottom numerplate light: 0,4W (12V) or 0,8W (24V) side numberplate light: 0,8W (12V) or 1,5W (24V) Weight Lamp: 1,3kgCable Length: 2mIP class: IP 66/68Approval: E20, R10, R23, R7, R Wiring Instructions:1. White – ground, negative2. Black – tail, rear position3. Yellow – indicator4. Grey/brown – reversing5. Blue – fog6. Red – brake
